HDView 4MP PoE IP Bullet Camera User Manual

1. Utangulizi

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your HDView 4MP PoE IP Bullet Camera. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.

2. Bidhaa Imeishaview

HDView 4MP PoE IP Bullet Camera is a high-resolution surveillance device designed for both indoor and outdoor security applications. It features Power over Ethernet (PoE) for simplified installation, H.265 encoding for efficient storage, and advanced night vision capabilities.

Figure 2.1: HDView 4MP PoE IP Bullet Camera. This image shows the white bullet-style camera with its mounting bracket.

Figure 2.2: Key features of the HDView camera, including H.265 encoding, 4MP Full HD resolution, 106-degree view, IP66 weatherproof rating, and night vision.

Figure 2.3: The camera's weatherproof design, highlighting its waterproof, dustproof, heat dissipation, and tamper-proof qualities, suitable for outdoor installation.

3. Kuweka

3.1 Ufungaji wa Kimwili

The camera is designed for flexible mounting on walls or ceilings. Ensure the mounting surface is strong enough to support the camera's weight. The camera's angle can be adjusted after mounting.

• Mahali pa Kupachika: Chagua eneo ambalo hutoa uwanja unaohitajika wa view and is within range of your network cable. Consider environmental factors for outdoor installations.
• Utaratibu wa Kuweka: Secure the camera's base to the chosen surface using appropriate screws and anchors. Adjust the pan, tilt, and rotation angles as needed.

3.2 Network Connection (PoE)

This camera supports Power over Ethernet (PoE), allowing both power and data transmission through a single Ethernet cable (Cat 5 or Cat 6). This simplifies wiring and installation.

• Connect to PoE Switch/Injector: Connect one end of an Ethernet cable to the camera's RJ45 port and the other end to a PoE-enabled switch or PoE injector.
• Non-PoE Setup (Optional): If a PoE switch/injector is not available, connect the camera to a standard network switch using an Ethernet cable and provide power via a DC12V power adapter (not included).

3.3 Usanidi wa Awali

After physical installation and network connection, the camera requires initial configuration. This typically involves discovering the camera on your network, setting an IP address, and creating user credentials.

• Zana ya Programu: Use the manufacturer's provided software tool (if available) or a standard IP camera discovery tool to locate the camera on your network.
• Kitambulisho Chaguomsingi: Refer to the camera's packaging or manufacturer's website for default login credentials. Change these immediately after initial access for security.
• Mipangilio ya Mtandao: Configure network settings such as IP address (static or DHCP), subnet mask, and gateway.

4. Maagizo ya Uendeshaji

Kijijini cha 4.1 Viewing

The camera supports remote viewing on various devices, allowing you to monitor your premises from anywhere.

• Programu ya Simu ya Mkononi: Download the official mobile application (e.g., for iPhone, Android) from your device's app store. Follow the in-app instructions to add your camera.
• Web Kivinjari: Fikia kamera web interface kwa kuingiza anwani yake ya IP katika a web kivinjari kwenye kompyuta yako.
• NVR/VMS: Integrate the camera with a Network Video Recorder (NVR) or Video Management Software (VMS) for centralized monitoring and recording.

Figure 4.1: The camera supports multi-platform viewing, allowing users to access live feeds from iPhones, Android phones, iPads, and computers.

4.2 Utambuzi wa Mwendo na Tahadhari

Configure motion detection settings to receive alerts when activity is detected in specified areas.

• Sehemu za kugundua: Bainisha maeneo mahususi ndani ya kamera view kwa utambuzi wa mwendo.
• Unyeti: Rekebisha unyeti wa kutambua mwendo ili kupunguza kengele za uwongo.
• Tahadhari: Set up notifications via email, push notifications to your mobile device, or other integrated alert systems.

4.3 Video Recording and H.265 Encoding

The camera utilizes H.265 encoding technology, which offers significant advantages over older H.264 compression.

• Efficient Compression: H.265 encoding reduces bandwidth consumption and storage requirements by over 50% compared to H.264, while maintaining high image quality.
• Chaguzi za Kurekodi: Configure continuous recording, scheduled recording, or motion-triggered recording.
• Hifadhi: Recordings can be stored on a Network Video Recorder (NVR) or remote network storage.

Figure 4.2: Comparison illustrating that H.265 consumes significantly less bandwidth than H.264 for similar image quality.

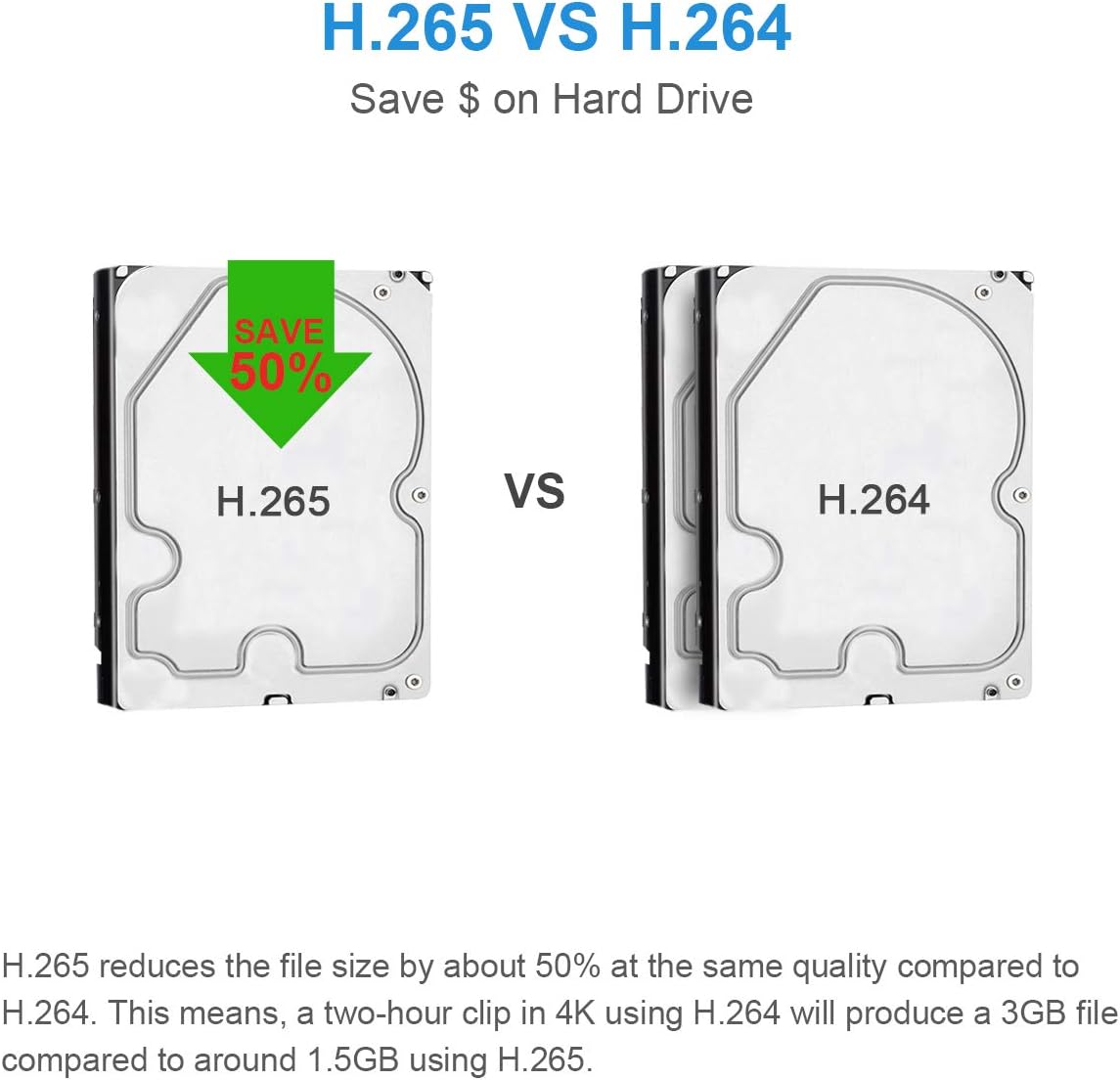

Figure 4.3: Comparison showing that H.265 reduces file size by approximately 50% compared to H.264, leading to significant storage savings.

4.4 Maono ya Usiku

The camera is equipped with smart infrared (IR) LEDs and black film technology to provide clear surveillance in low-light conditions.

• Umbali wa IR: Provides night vision up to 66 feet (20-30 meters).
• Black Film Technology: Enhances night vision performance by improving heat dissipation, reducing brightness attenuation, and increasing luminous efficiency.

Figure 4.4: The camera's smart IR LEDs enable clear night vision up to 66 feet, as depicted in a nighttime scene of a house with a pool.

Figure 4.5: A visual comparison showing the improved night vision quality with black film technology compared to cameras without it, demonstrating clearer images in low light.

4.5 Azimio la Video

The camera supports multiple video resolutions, with a maximum of 4 Megapixels for high-definition clarity.

• 4MP (2560x1440): Hutoa picha kali na zenye maelezo.
• Other Resolutions: Supports 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1, CIF, and 480x240 for flexibility.

Figure 4.6: Visual representation of the clarity provided by 4MP (2592x1520 pixels) resolution compared to 2MP (1920x1080 pixels) and 720P (1280x720 pixels).

5. Matengenezo

5.1 Kusafisha

Regular cleaning helps maintain optimal image quality and extends the camera's lifespan.

• Lenzi: Gently wipe the camera lens with a soft, clean cloth. For stubborn dirt, use a lens cleaning solution designed for optical surfaces.
• Makazi: Safisha sehemu ya kamera kwa tangazoamp kitambaa. Epuka visafishaji abrasive au vimumunyisho.

5.2 Sasisho za Firmware

Mara kwa mara angalia ya mtengenezaji website for firmware updates. Firmware updates can improve performance, add new features, and enhance security.

• Pakua: Pakua firmware ya hivi punde file from the official HDView ukurasa wa msaada.
• Usakinishaji: Follow the specific instructions provided with the firmware update. Ensure the camera remains powered during the update process.

6. Utatuzi wa shida

This section addresses common issues you might encounter with your HDView kamera.

• Hakuna Nguvu: Ensure the PoE connection is active or the DC12V power adapter is correctly connected and functioning. Check network cables for damage.
• Hakuna Video/Nje ya Mtandao: Verify network connectivity. Check if the camera's IP address is correct and accessible. Ensure no firewall rules are blocking communication. Reboot the camera and network equipment.
• Ubora duni wa Picha: Clean the camera lens. Check network bandwidth if streaming is choppy. Ensure the camera is configured for the desired resolution.
• Ugunduzi wa Mwendo Hausababishi: Review motion detection zone settings and sensitivity levels. Ensure the camera's time is synchronized.
• Haiwezi Kufikia kwa Mbali: Verify local network access first. Check router settings for port forwarding or UPnP if required for external access. Ensure the mobile app or web browser settings are correct.

If issues persist, consult the HDView msaada webtovuti au wasiliana na huduma kwa wateja.

7. Vipimo

8. Udhamini na Msaada

For warranty information, technical support, or service inquiries, please refer to the official HDView webtovuti au wasiliana na usaidizi kwa wateja wao moja kwa moja. Weka risiti yako ya ununuzi kama dhibitisho la ununuzi kwa madai ya udhamini.

• Rasilimali za Mtandaoni: Visit the HDView support page for FAQs, software downloads, and additional documentation.
• Wasiliana na Usaidizi: Use the contact information provided on the official webtovuti kwa msaada wa moja kwa moja.
