McGrey DJ-1222 DJ PA Speaker Instruction Manual

1. Utangulizi

Thank you for choosing the McGrey DJ-1222 DJ PA Speaker. This passive 2-way speaker system features a 30 cm (12 inch) subwoofer and two piezo tweeters, delivering a maximum output of 600 W. Designed for various audio applications, including parties, festivals, and music concerts, this speaker is built with a robust wooden housing, protective corners, and a durable felt surface. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your speaker.

2. Maagizo ya Usalama

• Read all instructions carefully before operating the speaker.
• Weka mwongozo huu kwa marejeleo ya baadaye.
• Usiweke spika kwenye mvua au unyevu ili kuzuia moto au mshtuko wa umeme.
• Hakikisha uingizaji hewa sahihi. Usizuie fursa yoyote ya uingizaji hewa.
• Weka msemaji kwenye uso thabiti, usawa.
• Epuka kuweka spika karibu na vyanzo vya joto kama vile radiator, rejista za joto, majiko, au vifaa vingine vya kutoa joto.
• Tumia viambatisho/vifaa vilivyobainishwa na mtengenezaji pekee.
• Disconnect the speaker from the power source during lightning storms or when unused for long periods.
• Rejelea huduma zote kwa wahudumu waliohitimu. Huduma inahitajika wakati kifaa kimeharibiwa kwa njia yoyote, kama vile kamba ya usambazaji wa umeme au plagi imeharibiwa, kioevu kimemwagika au vitu vimeanguka kwenye kifaa, kifaa kimeathiriwa na mvua au unyevu, haifanyi kazi kawaida. , au imetupwa.
• This is a passive speaker and requires an external ampmaisha zaidi. Hakikisha amplifier's power output and impedance match the speaker's specifications to prevent damage.

3. Yaliyomo kwenye Kifurushi

The McGrey DJ-1222 DJ PA Speaker package includes:

• 1 x McGrey DJ-1222 DJ PA Speaker
• Integrated practical carrying handles
• Mwongozo wa Mtumiaji (hati hii)

Picha: mbele na nyuma view of the McGrey DJ-1222 PA speaker, showcasing its robust design and connection panel.

4. Kuweka

4.1 Uwekaji

The McGrey DJ-1222 speaker features a robust wooden housing with protective corners and a durable felt surface, making it suitable for various environments. For optimal sound dispersion, place the speaker on a stable surface or utilize its integrated 35 mm pole mount for stand placement.

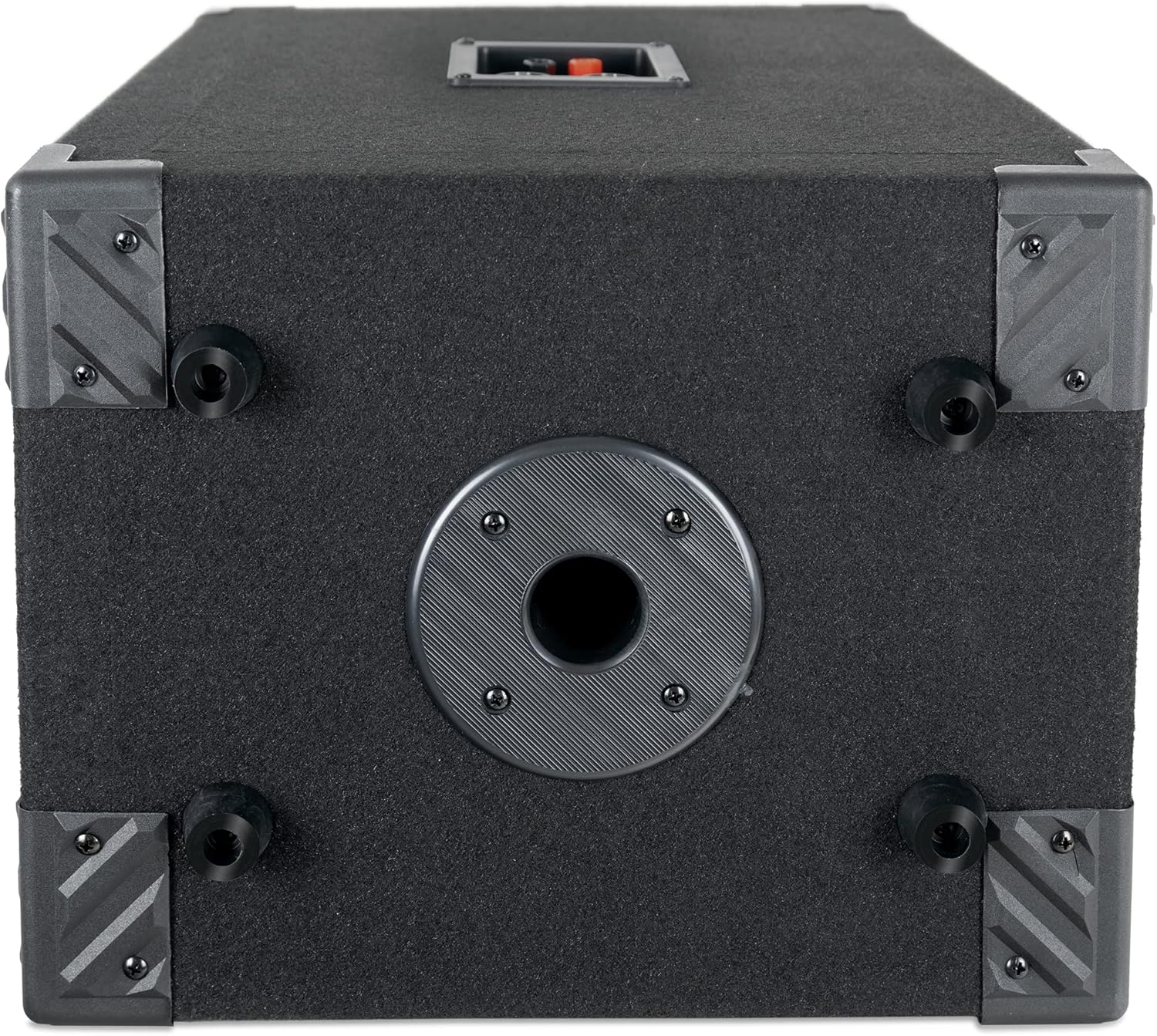

Picha: Chini view of the speaker, highlighting the 35 mm pole mount for stand installation.

4.2 Viunganishi

This passive speaker requires an external amplifier. Connect the speaker to your amplifier using appropriate cables. The speaker offers multiple connection options:

• Speakon-compatible inputs/outputs: Use Speakon cables for secure and reliable connections to compatible amplifiers. There is one input and one output.
• 6.3 mm Jack inputs: Two 6.3 mm jack inputs are available for standard audio connections.
• Gold-plated stereo screw terminal input: For traditional wire connections, use the gold-plated screw terminals.

Ensure all connections are secure and correctly polarized (positive to positive, negative to negative) to prevent damage and ensure proper sound reproduction. Always turn off your amplifier before making or changing connections.

Picha: Kina view of the speaker's connection panel, showing Speakon, 6.3 mm jack, and screw terminal inputs.

5. Maagizo ya Uendeshaji

Once the speaker is correctly connected to a suitable amplifier, you can begin operation. This speaker is a passive unit, meaning all volume and tone adjustments are controlled via your external amplifier au mixer.

• Washa: Washa yako amplifier first, then your audio source.
• Udhibiti wa Sauti: Adjust the volume using the controls on your amplifier or mixer. Start with a low volume and gradually increase it to a comfortable listening level.
• Utoaji sauti: The 2-way system with a 30 cm (12 inch) subwoofer and two piezo tweeters is designed to provide a balanced sound profile.
• Zima umeme: When finished, turn off your audio source first, then your ampmaisha zaidi.

Picha: Mbele view of the McGrey DJ-1222 PA speaker, showing the 12-inch subwoofer and three piezo tweeters.

6. Matengenezo

Proper maintenance ensures the longevity and optimal performance of your McGrey DJ-1222 speaker.

• Kusafisha: Use a soft, dry cloth to clean the exterior of the speaker. Do not use liquid cleaners or aerosols, as they may damage the finish or internal components.
• Hifadhi: When not in use, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures.
• Kushughulikia: Always use the integrated carrying handles when moving the speaker to prevent damage. Avoid dropping or subjecting the speaker to strong impacts.
• Ukaguzi: Periodically check all cables and connections for wear or damage. Replace any damaged cables immediately.

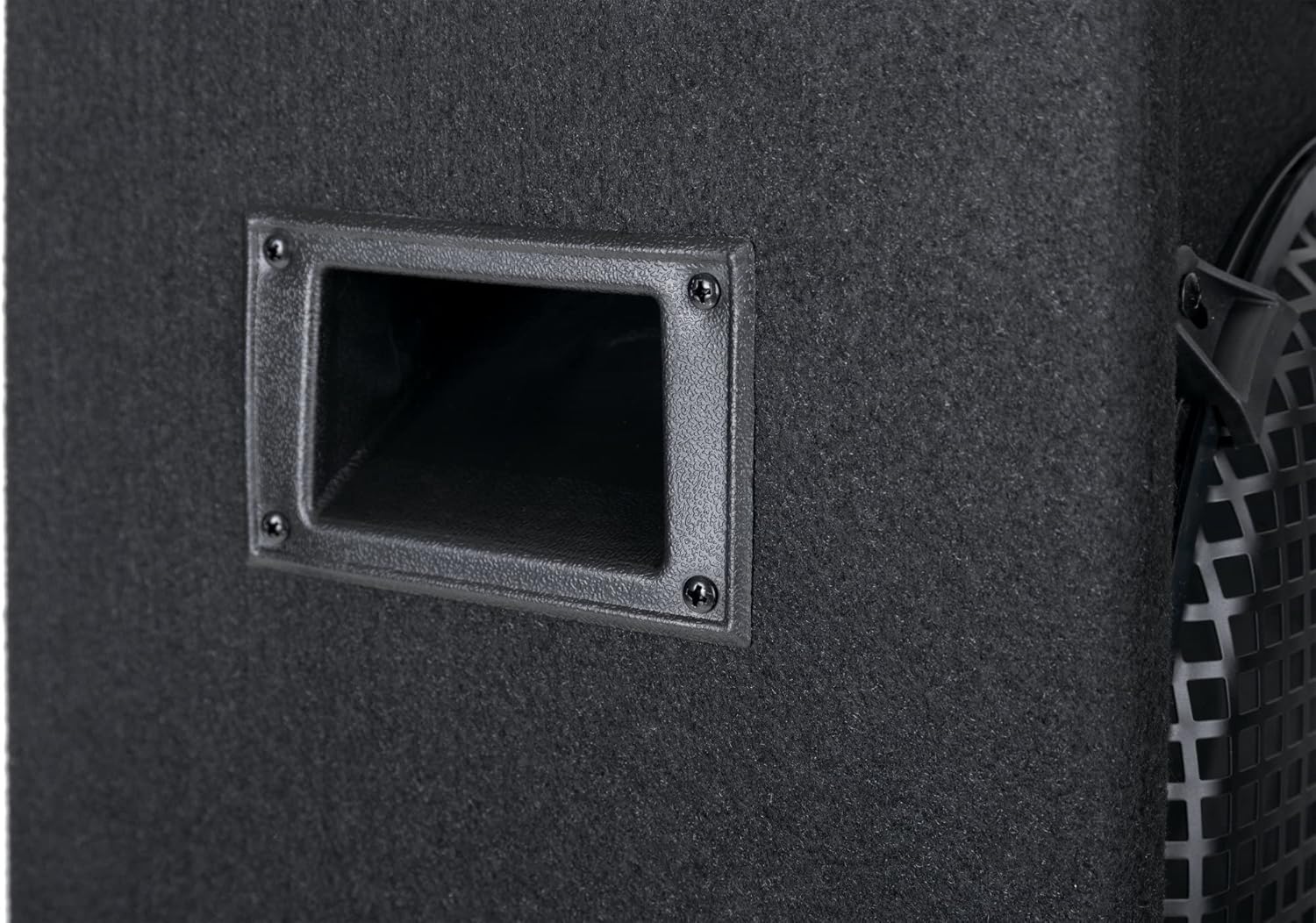

Image: Close-up of the robust integrated carrying handle, designed for easy transport.

7. Utatuzi wa shida

If you experience issues with your McGrey DJ-1222 speaker, refer to the following common troubleshooting steps:

8. Vipimo

Image: Diagram showing the approximate dimensions of the McGrey DJ-1222 PA speaker.

9. Udhamini na Msaada

9.1 Taarifa ya Udhamini

The McGrey DJ-1222 DJ PA Speaker comes with a limited warranty. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.

9.2 Usaidizi kwa Wateja

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact McGrey customer support or your authorized dealer. Contact information can typically be found on the manufacturer's webtovuti au risiti yako ya ununuzi.
