ASRock P55 DELUXE3 Motherboard User Manual

1. Utangulizi

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the ASRock P55 DELUXE3 motherboard. Please read this manual thoroughly before installing or using your new motherboard to ensure proper setup and optimal performance. This motherboard supports Intel LGA1156 processors and features advanced technologies such as SATA3 and USB 3.0.

2. Bidhaa za Bidhaa

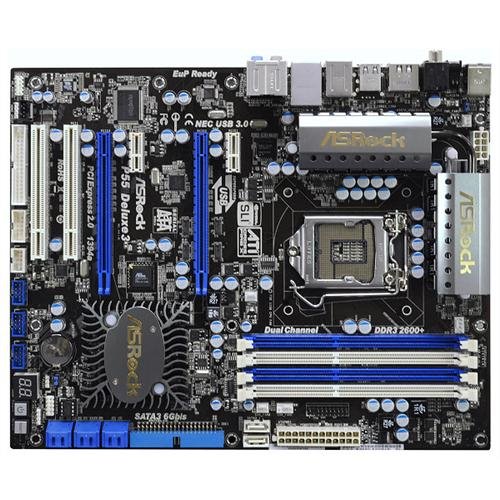

The ASRock P55 DELUXE3 motherboard is designed with the following key features:

• Msaada wa CPU: Socket 1156 for Intel Core i7/i5/i3 and Pentium G6950 Processors, including Intel Turbo Boost and Hyper-Threading Technology.
• Chipset: Intel P55.
• Kumbukumbu: 4x 240-pin DDR3 DIMM slots, supporting up to 16 GB of non-ECC, un-buffered dual-channel memory at speeds up to 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 MHz.
• Nafasi za Upanuzi: 2x PCI-Express 2.0 x16 slots (supporting ATI Quad CrossFireX and nVidia Quad SLI Technology), 2x PCI-Express 2.0 x1 slots, and 2x PCI slots.
• Hifadhi: 1x ATA-133 channel, 2x SATA3 ports (supporting RAID 0, 1), and 6x SATA2 ports (supporting RAID 0, 1, 5, 10, JBOD).
• Sauti: VIA VT2020 7.1-Channel Audio CODEC.
• LAN: Realtek RTL8111DL PCI-Express x1 Gigabit Ethernet Controller.
• Bandari za USB: 12x USB 2.0 ports (5 rear, 6 by headers, 1 by Powered eSATA3/USB Connector) and 2x USB 3.0 ports.
• Bandari Nyingine: 1x IEEE 1394 Port, 2x PS/2 Ports, 1x RJ45 LAN Port, 1x Coaxial SPDIF Out Port, 1x Optical SPDIF Out Port, and Audio I/O Jacks.

3. Mwongozo wa Kuweka

Follow these steps for the proper installation of your ASRock P55 DELUXE3 motherboard and associated components.

3.1 Kufungua na Kukagua

Carefully remove the motherboard from its packaging. Inspect for any visible damage. Ensure all accessories listed in the product packaging are present.

3.2 Component Preparation

1. Ufungaji wa CPU: Open the LGA 1156 CPU socket lever. Align the CPU with the socket, ensuring the gold triangle on the CPU matches the triangle on the socket. Gently place the CPU into the socket without force. Close the lever to secure the CPU.
2. Ufungaji wa Kipolishi cha CPU: Apply thermal paste to the CPU if not pre-applied on the cooler. Mount the CPU cooler according to its specific instructions, ensuring it is securely fastened and making good contact with the CPU.
3. Ufungaji wa Kumbukumbu (RAM): Open the clips on both ends of the DDR3 DIMM slots. Align the memory module with the slot, ensuring the notch on the module matches the key in the slot. Press down firmly on both ends of the module until the clips snap into place. For dual-channel operation, refer to the motherboard layout for recommended slot pairings.
4. Graphics Card (Optional): If installing a dedicated graphics card, open the retention clip on the PCI-Express 2.0 x16 slot. Align the card with the slot and press firmly until it is seated. Secure the card with a screw to the chassis.

3.3 Motherboard Installation into Chassis

Install the I/O shield into the rear opening of your computer case. Carefully place the motherboard into the chassis, aligning the screw holes on the motherboard with the standoffs in the case. Secure the motherboard with screws.

3.4 Kuunganisha nyaya

Unganisha nyaya zifuatazo:

• Viunganishi vya Nguvu: Connect the 24-pin ATX main power connector and the 8-pin CPU power connector from your power supply to the corresponding ports on the motherboard.
• SATA Data Cables: Connect your storage devices (HDDs, SSDs, optical drives) to the SATA2 or SATA3 ports on the motherboard.
• Viunganishi vya Paneli ya Mbele: Connect the power button, reset button, HDD LED, power LED, and front panel USB/audio headers to their respective pins on the motherboard. Refer to the motherboard diagram for correct pin assignments.
• Viunganishi vya Mashabiki: Connect CPU fan and chassis fans to the appropriate fan headers.

4. Maagizo ya Uendeshaji

After physical installation, proceed with the initial boot and software setup.

4.1 Usanidi wa Kwanza wa Kuwasha na BIOS

Washa mfumo wako. Bonyeza kitufe kilichowekwa (kawaida DEL or F2) during startup to enter the BIOS/UEFI setup utility. In the BIOS, you can configure boot order, system time, and various hardware settings. Ensure your storage devices are detected and set the primary boot device.

4.2 Ufungaji wa Mfumo wa Uendeshaji

Insert your operating system installation media (USB drive or DVD). Follow the on-screen prompts to install your preferred operating system. Ensure the system boots from the installation media.

4.3 Ufungaji wa Dereva

After the operating system is installed, install the necessary drivers for your motherboard. These typically include:

• Madereva ya Chipset
• Audio Drivers (VIA VT2020)
• LAN Drivers (Realtek RTL8111DL Gigabit Ethernet)
• USB 3.0 Drivers
• SATA/RAID Drivers (if using RAID configuration)

These drivers can usually be found on the ASRock support webtovuti kwa muundo wako maalum wa ubao wa mama.

4.4 Kutumia Vipengele vya Kina

The ASRock P55 DELUXE3 supports advanced features:

• Quad CrossFireX & Quad SLI: For multi-GPU configurations, ensure your graphics cards are compatible and install the necessary drivers from AMD or NVIDIA.
• SATA3 (6Gb/s): Connect compatible SSDs to the SATA3 ports for maximum performance.
• USB 3.0: Utilize the blue USB 3.0 ports for high-speed data transfer with compatible devices.

5. Matengenezo

Utunzaji wa kawaida husaidia kuhakikisha maisha marefu na utendakazi thabiti wa ubao wako wa mama.

• Kusafisha vumbi: Periodically clean dust from inside your computer case, especially around the CPU cooler, chipset heatsinks, and fan vents. Use compressed air for best results. Ensure the system is powered off and unplugged before cleaning.
• Sasisho za BIOS: Angalia ASRock website for BIOS updates. BIOS updates can improve compatibility, stability, and performance. Follow ASRock's specific instructions for BIOS flashing carefully to avoid system damage.
• Sasisho za Dereva: Keep your motherboard drivers updated to the latest versions available on the ASRock support website. This can resolve issues and improve performance.
• Usimamizi wa Cable: Ensure all cables are neatly routed to promote better airflow and prevent interference.

6. Utatuzi wa shida

Sehemu hii inashughulikia masuala ya kawaida ambayo unaweza kukutana nayo.

6.1 Hakuna Nguvu / Hakuna Boot

• Thibitisha kwamba kebo zote za umeme (ATX ya pini 24, CPU ya pini 8) zimeunganishwa salama kwenye ubao mama na usambazaji wa umeme.
• Hakikisha swichi ya usambazaji umeme iko katika nafasi ya 'WASHA'.
• Angalia muunganisho wa kitufe cha nguvu cha paneli ya mbele kwenye ubao wa mama.
• Jaribu usambazaji wa umeme kwa kutumia mfumo mwingine au kifaa cha kupima usambazaji wa umeme.

6.2 No Display / POST Errors

• Ensure the monitor is connected to the correct graphics output (either integrated or dedicated GPU).
• Weka upya kadi ya picha na moduli za kumbukumbu.
• Try booting with only one RAM stick installed, testing each stick individually.
• Clear the CMOS (Complementary Metal-Oxide-Semiconductor) by removing the CMOS battery for a few minutes or using the clear CMOS jumper (refer to motherboard diagram).
• Listen for beep codes from the motherboard speaker, which can indicate specific hardware issues. Consult the ASRock website for beep code interpretations.

6.3 Component Not Detected

• Hifadhi za Hifadhi: Check SATA data and power cable connections. Verify detection in BIOS. Ensure correct drivers are installed in the operating system.
• Vifaa vya USB: Try different USB ports. Ensure USB drivers are installed.
• Mtandao: Check LAN cable connection. Ensure LAN drivers are installed. Verify network adapter is enabled in BIOS and operating system.

Kwa usaidizi zaidi, rejelea usaidizi wa ASRock website or contact ASRock technical support.

7. Vipimo

Detailed technical specifications for the ASRock P55 DELUXE3 motherboard:

8. Udhamini na Msaada

ASRock provides a limited warranty for its motherboards. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For technical support, driver downloads, BIOS updates, and detailed product information, please visit the official ASRock webtovuti:

www.asrock.com

When contacting support, please have your motherboard model (P55 DELUXE3) and serial number ready.
